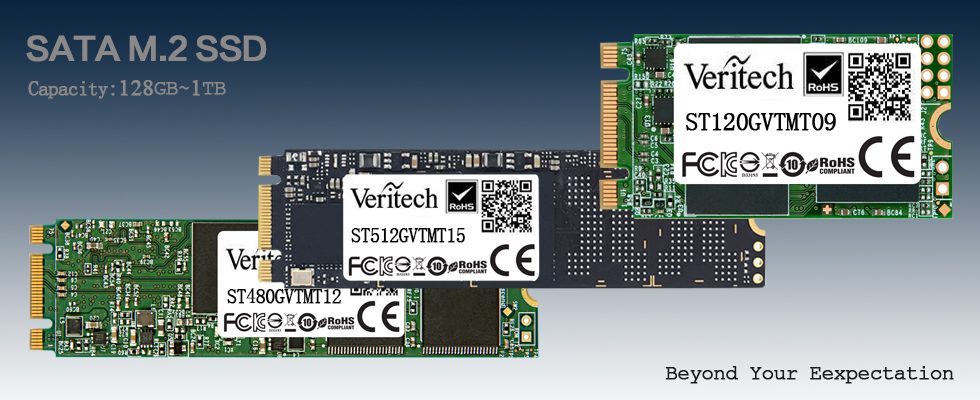

SATA M.2 SSD 2280/2260/2242


The Veritech M.2 Solid State Disk(M.2 SSD) is the superior sotrage choice for ultrabooks and thin,light hotebooks. With its ultra compact dimensions makesit best suited to address the high performance needs and strict size limitations of small form factor devices ; without power constantly consumed by the spinning disk like the traditional HDD, it yields less heat, meaning the benefit of power saving not only comes from the M.2 SSD itself, but also comes from the reducing usage of the ventilation fan. Veritech M.2 SSD is the premium choices for handling everyday compnting tasks.

Basic Specification

  • Capacity: 128GB、256GB、480GB、512GB、1TB
  • 2280 Dimension: 80 x 22 x 4 mm (3.15"x0.87"x0.14")
  • 2260 Dimension: 60 x 22 x 4 mm (2.36"x0.87"x0.14")
  • 2242 Dimension: 42 x 22 x 4 mm (1.65"x0.87"x0.14")
  • Interface: SATA III 6GB/S
  • Weight:9g
  • Flash:MLC Flash
  • Operating temperature:0°C(32°F) ~ 70°C(158°F)
  • Voltage:3.3V±5%
  • Data Transfer Rate:
  • * Sequential read rate up to 500 MB/sec
    * Sequential write rate up to 450 MB/sec
